944.521141
Exploded views & replacement parts
Choose a section below, then click a number directly on the diagram to view the corresponding part.
SNOWBLOWER PARTS
Craftsman 944.521141ENGINE PARTS

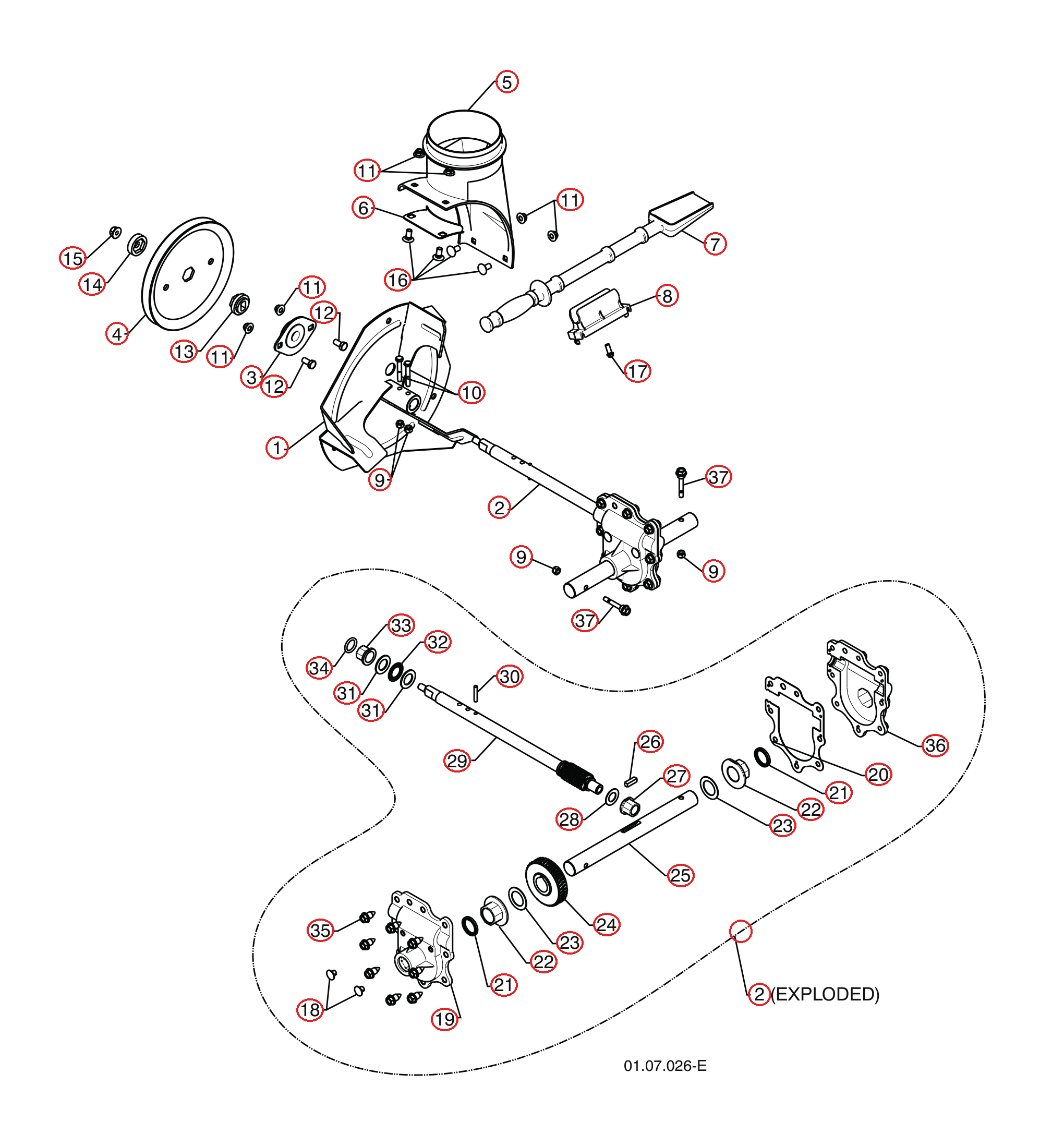

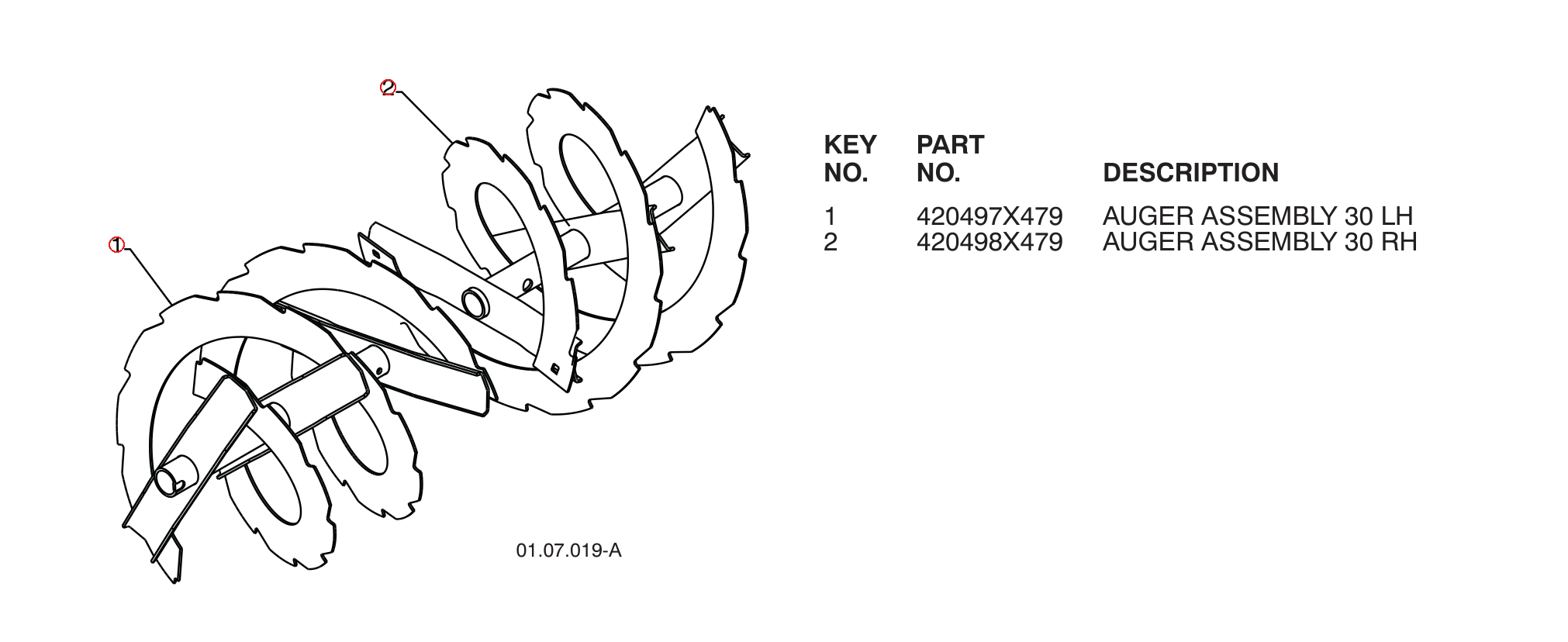

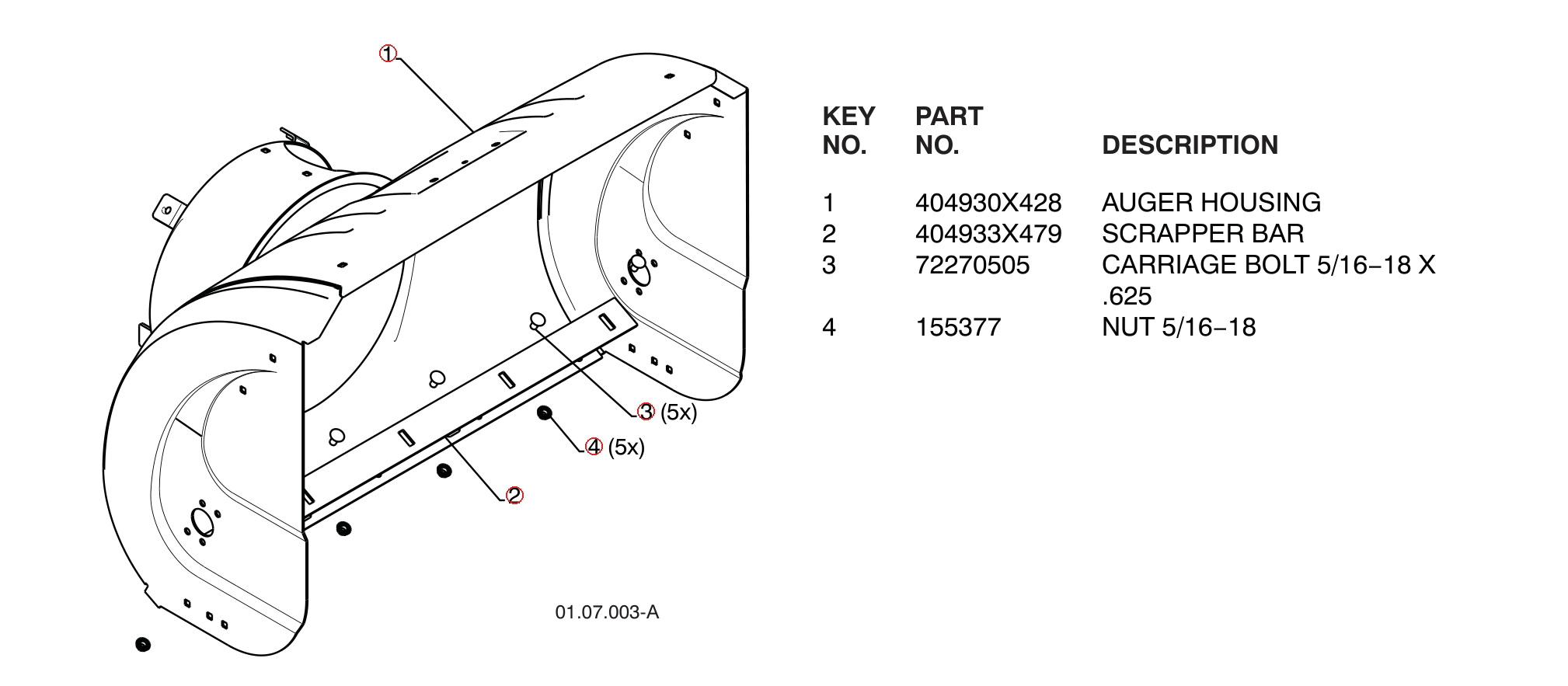

EngineAUGER HOUSING / IMPELLER ASSEMBLY (1/2)
Parts manual – page 23
