ST 430
Exploded views & replacement parts
Choose a section below, then click a number directly on the diagram to view the corresponding part.
SNOWBLOWER PARTS
Husqvarna ST 430ENGINE PARTS
LCTVue éclatée

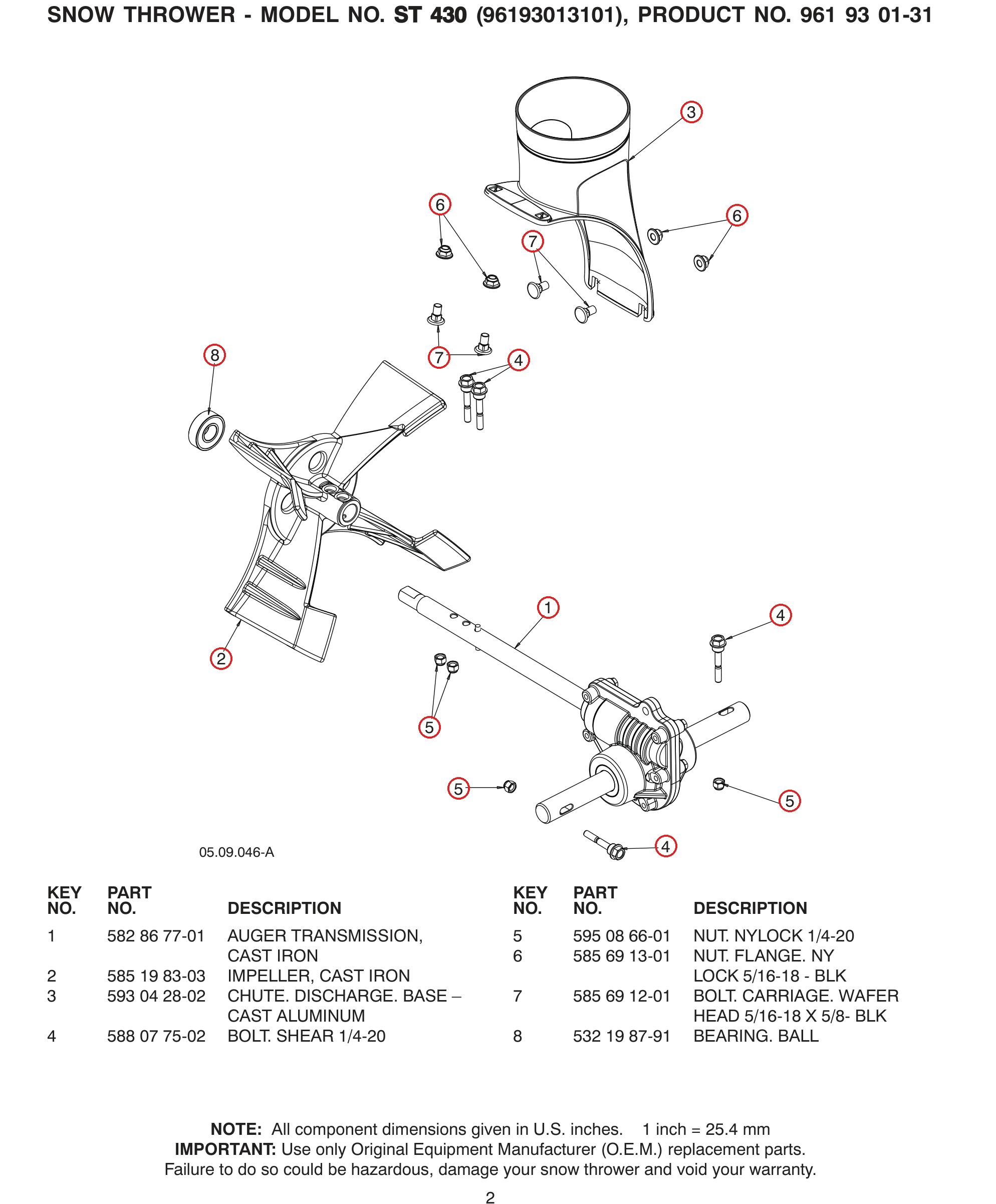

Parts manual – page 2
100%
| Callout | Part | Availability | Price | Qty | Actions |
|---|---|---|---|---|---|
|
582 86 77-01 AUGER TRANSMISSION, |
|||||
|
585 19 83-03 IMPELLER, CAST IRON |
|||||
|
593 04 28-02 CHUTE. DISCHARGE. BASE – |
|||||
 588 07 75-02 BOLT. SHEAR 1/4-20 192090 Shear pin |
In stock 4 available |
$15.00 |
|||
 595 08 66-01 NUT. NYLOCK 1/4-20 73800400 Nut Craftsman, Husqvarna |
In stock 20+ available |
$1.50 |
|||
|
585 69 13-01 NUT. FLANGE. NY |
|||||
|
585 69 12-01 BOLT. CARRIAGE. WAFER |
|||||
 532 19 87-91 BEARING. BALL 532198791 Craftsman flange bearing |
In stock 3 available |
$12.00 |
